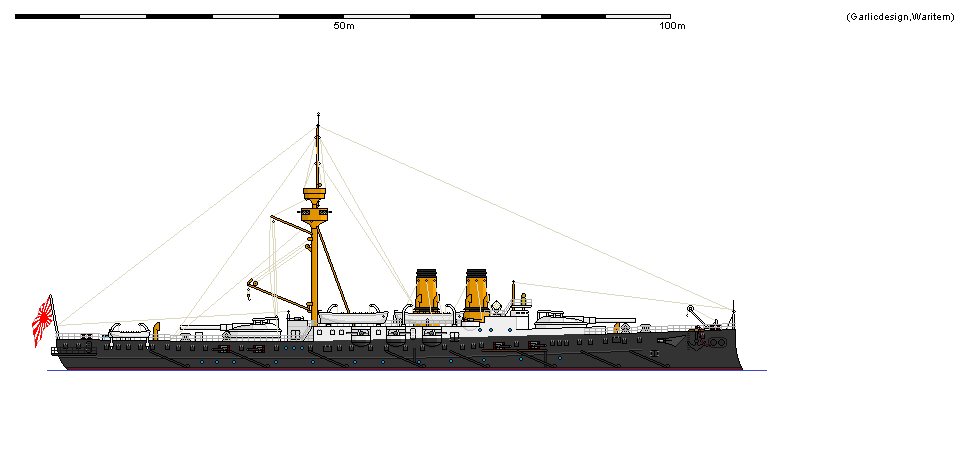

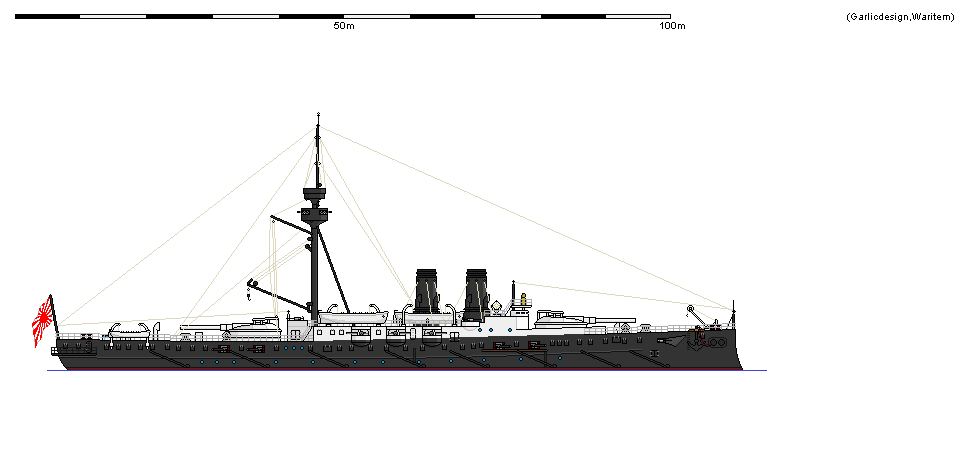

Japoński krążownik pancerny Chiyoda pierwotnie miał być zupełnie innym okrętem niż w rzeczywistości. Miał bowiem nieść 1 albo 2 działa Caneta kal. 320 mm i… tyle mniej więcej na ten temat wiadomo ;) Jest oczywistym, że w wariancie z 1 działem musiałby to być albo okręt w typie powiększonej kanonierki flatiron, albo okręt znacznie powiększony, a w wariancie z 2 działami – zdecydowanie powiększony, do rozmiarów przewyższających krążowniki typu Matsushima. Na warsztat wziąłem, jako bardziej obiecujący, wariant drugi. Mamy więc coś w rodzaju powiększonej (przedłużonej) Matsushimy, z działami na dziobie i rufie. Dzięki większym rozmiarom i wyporności można mieć nadzieję, że okręt będzie miał solidniejszą konstrukcję niż jednostki wspomnianego typu i nie będą go aż tak mocno trapić ich przypadłości (np. awarie wynikające z odrzutu dział nieproporcjonalnie silnych w stosunku do wielkości okrętów)
Okręt posiada ochronę w postaci pokładu pancernego grubości 50 mm ze skosami 80 mm (w odróżnieniu od wypukłego pokładu Matsushimy). Opancerzenie to wykonane zostało ze stali utwardzanej metodą Harveya. Ochronę kadłuba uzupełniały zasobnie węglowe oraz koferdamy z celulozą, która rozszerzając się pod wpływem wody ma za zadanie uszczelniać przecieki. Poza tym jednostkę wyposażono w sieci przeciwtorpedowe, rozwieszane na wytykach. Oprócz dział 320 mm, okręt wyposażono w szybkostrzelne działa systemu Armstronga kal. 120 mm, oraz 6-, 3- i 1-funtowe Hotchkissy przeciw torpedowcom. Wreszcie, okręt posiada 4 nawodne wyrzutnie torped kal. 356 mm.
Chiyoda, japanese protected cruiser laid down 1889 (Engine 1891)
Displacement:
5 332 t light; 5 567 t standard; 6 283 t normal; 6 855 t full load
Dimensions: Length overall / water x beam x draught
350,00 ft / 344,03 ft x 53,67 ft x 21,46 ft (normal load)
106,68 m / 104,86 m x 16,36 m x 6,54 m
Armament:
2 - 12,60" / 320 mm guns in single mounts, 954,82lbs / 433,10kg shells, 1887 Model
Breech loading guns in turrets (on barbettes)
on centreline ends, evenly spread
Main guns limited to end-on fire
8 - 4,72" / 120 mm guns in single mounts, 48,77lbs / 22,12kg shells, 1885 Model
Breech loading guns in casemate mounts
on side, evenly spread
8 guns in hull casemates - Limited use in heavy seas
6 - 2,24" / 57,0 mm guns in single mounts, 5,06lbs / 2,30kg shells, 1883 Model
Quick firing guns in deck mounts
on side, all amidships
6 guns in hull casemates - Limited use in heavy seas
6 - 1,85" / 47,0 mm guns in single mounts, 2,93lbs / 1,33kg shells, 1885 Model
Quick firing guns in deck mounts
on side, evenly spread, 2 raised mounts
2 guns in hull casemates - Limited use in heavy seas
4 - 1,46" / 37,0 mm guns in single mounts, 1,43lbs / 0,65kg shells, 1885 Model
Quick firing guns in deck mounts
on centreline, all amidships, all raised mounts - superfiring
Weight of broadside 2 353 lbs / 1 068 kg
Shells per gun, main battery: 80
4 - 14,0" / 356 mm above water torpedoes
Armour:
- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 3,94" / 100 mm 1,57" / 40 mm 12,0" / 305 mm
2nd: 1,97" / 50 mm - -
3rd: 0,51" / 13 mm - -
- Armour deck: 2,36" / 60 mm (deck 1,97" / 50 mm, slopes 3,15" / 80 mm), Conning tower: 5,98" / 152 mm
Machinery:
Coal fired boilers, complex reciprocating steam engines,
Direct drive, 2 shafts, 8 522 ihp / 6 357 Kw = 18,00 kts
Range 5 900nm at 10,00 kts
Bunker at max displacement = 1 288 tons (100% coal)
Complement:
352 - 458
Cost:
£0,651 million / $2,603 million
Distribution of weights at normal displacement:
Armament: 294 tons, 4,7%
Armour: 1 009 tons, 16,1%
- Belts: 0 tons, 0,0%
- Torpedo bulkhead: 0 tons, 0,0%
- Armament: 399 tons, 6,4%
- Armour Deck: 566 tons, 9,0%
- Conning Tower: 44 tons, 0,7%
Machinery: 1 549 tons, 24,7%
Hull, fittings & equipment: 2 479 tons, 39,5%
Fuel, ammunition & stores: 951 tons, 15,1%
Miscellaneous weights: 0 tons, 0,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
5 259 lbs / 2 385 Kg = 5,3 x 12,6 " / 320 mm shells or 1,0 torpedoes
Stability (Unstable if below 1.00): 1,13
Metacentric height 2,5 ft / 0,8 m
Roll period: 14,3 seconds
Steadiness - As gun platform (Average = 50 %): 99 %
- Recoil effect (Restricted arc if above 1.00): 1,16
Seaboat quality (Average = 1.00): 1,97
Hull form characteristics:
Hull has rise forward of midbreak
Block coefficient: 0,555
Length to Beam Ratio: 6,41 : 1
'Natural speed' for length: 18,55 kts
Power going to wave formation at top speed: 48 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -26,00 degrees
Stern overhang: 5,97 ft / 1,82 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 20,44 ft / 6,23 m
- Forecastle (25%): 17,95 ft / 5,47 m
- Mid (65%): 21,95 ft / 6,69 m (14,47 ft / 4,41 m aft of break)
- Quarterdeck (24%): 14,47 ft / 4,41 m
- Stern: 15,45 ft / 4,71 m
- Average freeboard: 17,89 ft / 5,45 m
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 114,6%
- Above water (accommodation/working, high = better): 122,8%
Waterplane Area: 12 948 Square feet or 1 203 Square metres
Displacement factor (Displacement / loading): 97%
Structure weight / hull surface area: 116 lbs/sq ft or 564 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,87
- Longitudinal: 3,24
- Overall: 1,00
Hull space for machinery, storage, compartmentation is cramped
Room for accommodation and workspaces is excellent
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather
