Kolejne okręciki dla polskiej floty:) Pierwszy z nich to
pływająca bateria uzbrojona w ciężkie, 60-funtowe działa gładkolufowe, mająca
służyć do obrony bazy w Lipawie (to będzie nasza główna, a przez dłuższy chyba
czas jedyna baza morska). Nie ukrywam, że okręt jest inspirowany nieco
podobnymi jednostkami brytyjskimi i francuskimi z wojny krymskiej, które wówczas
dowiodły swojej skuteczności. Różnica w stosunku do nich polega na tym, że
okręt nie posiada opancerzenia, bowiem nie ma walczyć z wrogimi fortami tylko
okrętami, w domyśle – również nieopancerzonymi.
Drugi okręt, to zmodyfikowana kanonierka, również niosąca
najcięższe wówczas we flocie działo 60-funtowe. Nazwy okrętów w typie utrzymane
są nadal w konwencji mitologicznej..
Lipawa, polish floating battery laid down 1857
Displacement:
827 t light; 888 t standard; 901 t normal; 911 t full load
Dimensions: Length overall / water x beam x draught
167,55 ft / 166,04 ft x 41,11 ft x 8,01 ft (normal load)
51,07 m / 50,61 m x 12,53 m x 2,44 m
Armament:
22 - 60pdr guns in single mounts, 60lbs / 27,22kg shells, 1857 Model
Smoothbore guns in broadside mounts
on side, evenly spread
Weight of broadside 660 lbs / 299 kg
Shells per gun, main battery: 150
Machinery:
Coal fired boilers, simple reciprocating steam engines,
Direct drive, 1 shaft, 25 ihp / 18 Kw = 4,00 kts
Range 700nm at 3,00 kts
Bunker at max displacement = 23 tons (100% coal)
Complement:
81 - 106
Cost:
£0,084 million / $0,337 million
Distribution of weights at normal displacement:
Armament: 64 tons, 7,2%
Machinery: 9 tons, 1,0%
Hull, fittings & equipment: 754 tons, 83,7%
Fuel, ammunition & stores: 73 tons, 8,2%
Miscellaneous weights: 0 tons, 0,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
1 093 lbs / 496 Kg = 46,6 x 4,5 " / 115 mm shells or 0,5 torpedoes
Stability (Unstable if below 1.00): 1,28
Metacentric height 2,1 ft / 0,6 m
Roll period: 12,0 seconds
Steadiness - As gun platform (Average = 50 %): 93 %
- Recoil effect (Restricted arc if above 1.00): 0,27
Seaboat quality (Average = 1.00): 1,87
Hull form characteristics:
Hull has a flush deck
Block coefficient: 0,577
Length to Beam Ratio: 4,04 : 1
'Natural speed' for length: 12,89 kts
Power going to wave formation at top speed: 8 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -11,00 degrees
Stern overhang: 1,51 ft / 0,46 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 9,97 ft / 3,04 m
- Forecastle (20%): 9,97 ft / 3,04 m
- Mid (50%): 9,97 ft / 3,04 m
- Quarterdeck (15%): 9,97 ft / 3,04 m
- Stern: 9,97 ft / 3,04 m
- Average freeboard: 9,97 ft / 3,04 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 59,0%
- Above water (accommodation/working, high = better): 111,7%
Waterplane Area: 4 761 Square feet or 442 Square metres
Displacement factor (Displacement / loading): 169%
Structure weight / hull surface area: 118 lbs/sq ft or 578 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 1,15
- Longitudinal: 4,60
- Overall: 1,33
Hull space for machinery, storage, compartmentation is excellent
Room for accommodation and workspaces is adequate
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather
Lipawa (1857)
Windawa (1858)
Displacement:
827 t light; 888 t standard; 901 t normal; 911 t full load
Dimensions: Length overall / water x beam x draught
167,55 ft / 166,04 ft x 41,11 ft x 8,01 ft (normal load)
51,07 m / 50,61 m x 12,53 m x 2,44 m
Armament:
22 - 60pdr guns in single mounts, 60lbs / 27,22kg shells, 1857 Model
Smoothbore guns in broadside mounts
on side, evenly spread
Weight of broadside 660 lbs / 299 kg
Shells per gun, main battery: 150
Machinery:
Coal fired boilers, simple reciprocating steam engines,
Direct drive, 1 shaft, 25 ihp / 18 Kw = 4,00 kts
Range 700nm at 3,00 kts
Bunker at max displacement = 23 tons (100% coal)
Complement:
81 - 106
Cost:
£0,084 million / $0,337 million
Distribution of weights at normal displacement:
Armament: 64 tons, 7,2%
Machinery: 9 tons, 1,0%
Hull, fittings & equipment: 754 tons, 83,7%
Fuel, ammunition & stores: 73 tons, 8,2%
Miscellaneous weights: 0 tons, 0,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
1 093 lbs / 496 Kg = 46,6 x 4,5 " / 115 mm shells or 0,5 torpedoes
Stability (Unstable if below 1.00): 1,28
Metacentric height 2,1 ft / 0,6 m
Roll period: 12,0 seconds
Steadiness - As gun platform (Average = 50 %): 93 %
- Recoil effect (Restricted arc if above 1.00): 0,27
Seaboat quality (Average = 1.00): 1,87
Hull form characteristics:
Hull has a flush deck
Block coefficient: 0,577
Length to Beam Ratio: 4,04 : 1
'Natural speed' for length: 12,89 kts
Power going to wave formation at top speed: 8 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -11,00 degrees
Stern overhang: 1,51 ft / 0,46 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 9,97 ft / 3,04 m
- Forecastle (20%): 9,97 ft / 3,04 m
- Mid (50%): 9,97 ft / 3,04 m
- Quarterdeck (15%): 9,97 ft / 3,04 m
- Stern: 9,97 ft / 3,04 m
- Average freeboard: 9,97 ft / 3,04 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 59,0%
- Above water (accommodation/working, high = better): 111,7%
Waterplane Area: 4 761 Square feet or 442 Square metres
Displacement factor (Displacement / loading): 169%
Structure weight / hull surface area: 118 lbs/sq ft or 578 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 1,15
- Longitudinal: 4,60
- Overall: 1,33
Hull space for machinery, storage, compartmentation is excellent
Room for accommodation and workspaces is adequate
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather
Lipawa (1857)
Windawa (1858)

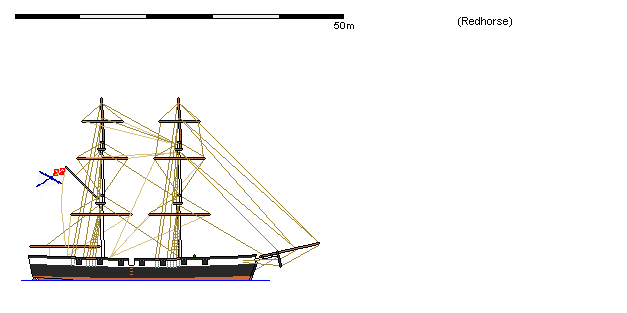

Hydra, polish gunboat laid down 1858
Displacement:
386 t light; 406 t standard; 460 t normal; 503 t full load
Dimensions: Length overall / water x beam x draught
138,26 ft / 124,74 ft x 24,15 ft x 10,01 ft (normal load)
42,14 m / 38,02 m x 7,36 m x 3,05 m
Armament:
1 - 60pdr guns in single mounts, 60lbs / 27,22kg shells, 1858 Model
Smoothbore gun in deck mount
on centreline forward
4 - 24pdr guns in single mounts, 24lbs / 10,89kg shells, 1858 Model
Smoothbore guns in broadside mounts
on side, evenly spread
Weight of broadside 108 lbs / 49 kg
Shells per gun, main battery: 160
Machinery:
Coal fired boilers, simple reciprocating steam engines,
Direct drive, 1 shaft, 327 ihp / 244 Kw = 10,00 kts
Range 1 300nm at 7,00 kts
Bunker at max displacement = 97 tons (100% coal)
Complement:
79
Cost:
£0,040 million / $0,158 million
Distribution of weights at normal displacement:
Armament: 12 tons, 2,7%
Machinery: 113 tons, 24,5%
Hull, fittings & equipment: 239 tons, 51,9%
Fuel, ammunition & stores: 74 tons, 16,0%
Miscellaneous weights: 23 tons, 5,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
255 lbs / 116 Kg = 10,6 x 4,5 " / 115 mm shells or 0,2 torpedoes
Stability (Unstable if below 1.00): 1,11
Metacentric height 0,7 ft / 0,2 m
Roll period: 11,9 seconds
Steadiness - As gun platform (Average = 50 %): 100 %
- Recoil effect (Restricted arc if above 1.00): 0,39
Seaboat quality (Average = 1.00): 2,00
Hull form characteristics:
Hull has a flush deck
Block coefficient: 0,534
Length to Beam Ratio: 5,17 : 1
'Natural speed' for length: 11,17 kts
Power going to wave formation at top speed: 45 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): 35,00 degrees
Stern overhang: 5,48 ft / 1,67 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 11,48 ft / 3,50 m
- Forecastle (20%): 10,47 ft / 3,19 m
- Mid (50%): 9,97 ft / 3,04 m
- Quarterdeck (15%): 10,47 ft / 3,19 m
- Stern: 11,98 ft / 3,65 m
- Average freeboard: 10,50 ft / 3,20 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 105,9%
- Above water (accommodation/working, high = better): 79,6%
Waterplane Area: 2 003 Square feet or 186 Square metres
Displacement factor (Displacement / loading): 133%
Structure weight / hull surface area: 58 lbs/sq ft or 285 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,83
- Longitudinal: 9,04
- Overall: 1,05
Hull space for machinery, storage, compartmentation is adequate
Room for accommodation and workspaces is cramped
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather
Hydra (1858)
Chimera (1858)
Tryton (1859)
Displacement:
386 t light; 406 t standard; 460 t normal; 503 t full load
Dimensions: Length overall / water x beam x draught
138,26 ft / 124,74 ft x 24,15 ft x 10,01 ft (normal load)
42,14 m / 38,02 m x 7,36 m x 3,05 m
Armament:
1 - 60pdr guns in single mounts, 60lbs / 27,22kg shells, 1858 Model
Smoothbore gun in deck mount
on centreline forward
4 - 24pdr guns in single mounts, 24lbs / 10,89kg shells, 1858 Model
Smoothbore guns in broadside mounts
on side, evenly spread
Weight of broadside 108 lbs / 49 kg
Shells per gun, main battery: 160
Machinery:
Coal fired boilers, simple reciprocating steam engines,
Direct drive, 1 shaft, 327 ihp / 244 Kw = 10,00 kts
Range 1 300nm at 7,00 kts
Bunker at max displacement = 97 tons (100% coal)
Complement:
79
Cost:
£0,040 million / $0,158 million
Distribution of weights at normal displacement:
Armament: 12 tons, 2,7%
Machinery: 113 tons, 24,5%
Hull, fittings & equipment: 239 tons, 51,9%
Fuel, ammunition & stores: 74 tons, 16,0%
Miscellaneous weights: 23 tons, 5,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
255 lbs / 116 Kg = 10,6 x 4,5 " / 115 mm shells or 0,2 torpedoes
Stability (Unstable if below 1.00): 1,11
Metacentric height 0,7 ft / 0,2 m
Roll period: 11,9 seconds
Steadiness - As gun platform (Average = 50 %): 100 %
- Recoil effect (Restricted arc if above 1.00): 0,39
Seaboat quality (Average = 1.00): 2,00
Hull form characteristics:
Hull has a flush deck
Block coefficient: 0,534
Length to Beam Ratio: 5,17 : 1
'Natural speed' for length: 11,17 kts
Power going to wave formation at top speed: 45 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): 35,00 degrees
Stern overhang: 5,48 ft / 1,67 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 11,48 ft / 3,50 m
- Forecastle (20%): 10,47 ft / 3,19 m
- Mid (50%): 9,97 ft / 3,04 m
- Quarterdeck (15%): 10,47 ft / 3,19 m
- Stern: 11,98 ft / 3,65 m
- Average freeboard: 10,50 ft / 3,20 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 105,9%
- Above water (accommodation/working, high = better): 79,6%
Waterplane Area: 2 003 Square feet or 186 Square metres
Displacement factor (Displacement / loading): 133%
Structure weight / hull surface area: 58 lbs/sq ft or 285 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,83
- Longitudinal: 9,04
- Overall: 1,05
Hull space for machinery, storage, compartmentation is adequate
Room for accommodation and workspaces is cramped
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather
Hydra (1858)
Chimera (1858)
Tryton (1859)
