Dziś projekt pancernika z jedną z największych liczbą dział w historii – 18-działowy projekt stoczni Ansaldo z 1908 r. dla Rosji (choć są też informacje, że był również oferowany Argentynie). Autorem ponoć był sam Cuniberti. Okręt charakteryzuje się nadzwyczaj niecodziennym układem uzbrojenia. Trójdziałowe wieże to jeszcze nic. Najlepsze jest ich rozmieszczenie. Cztery wieże umieszczono bowiem na burtach – jedna para na dziobie, druga na śródokręciu, a pozostałe 2 – w superpozycji na rufie. Przekazów na temat motywacji takiego układu brak, ale być może chodziło o to, że okręt nie miał walczyć w składzie długiej linii bojowej, gdzie najważniejsza jest salwa burtowa, ale pojedynczo lub w składzie nielicznego zespołu, gdzie ważniejsze jest równomierne pokrycie ogniem wszystkich sektorów wokół okrętu.
Mimo iż dość lekko opancerzony i mający standardową prędkość, zamiast projektowych 23 000 ton, okręt liczy sobie 24000 ton. Zatem, jak wiele projektów z tamtego czasu, zwłaszcza wielodziałowych, okazał się nieco niedoszacowany co do wyporności, ale nie aż tak jakby mogło się wydawać na pierwszy rzut oka. Zdaje się to sugerować, że wbrew pozorom, był on jakoś tam policzony, a nie był tylko zbiorem pobożnych życzeń. Nie miał przy tym, rzecz jasna, specjalnych szans na realizację, niemniej jest bardzo ciekawy i niecodzienny i to mi wystarczyło, by się nim zająć. Efekt - poniżej ;)

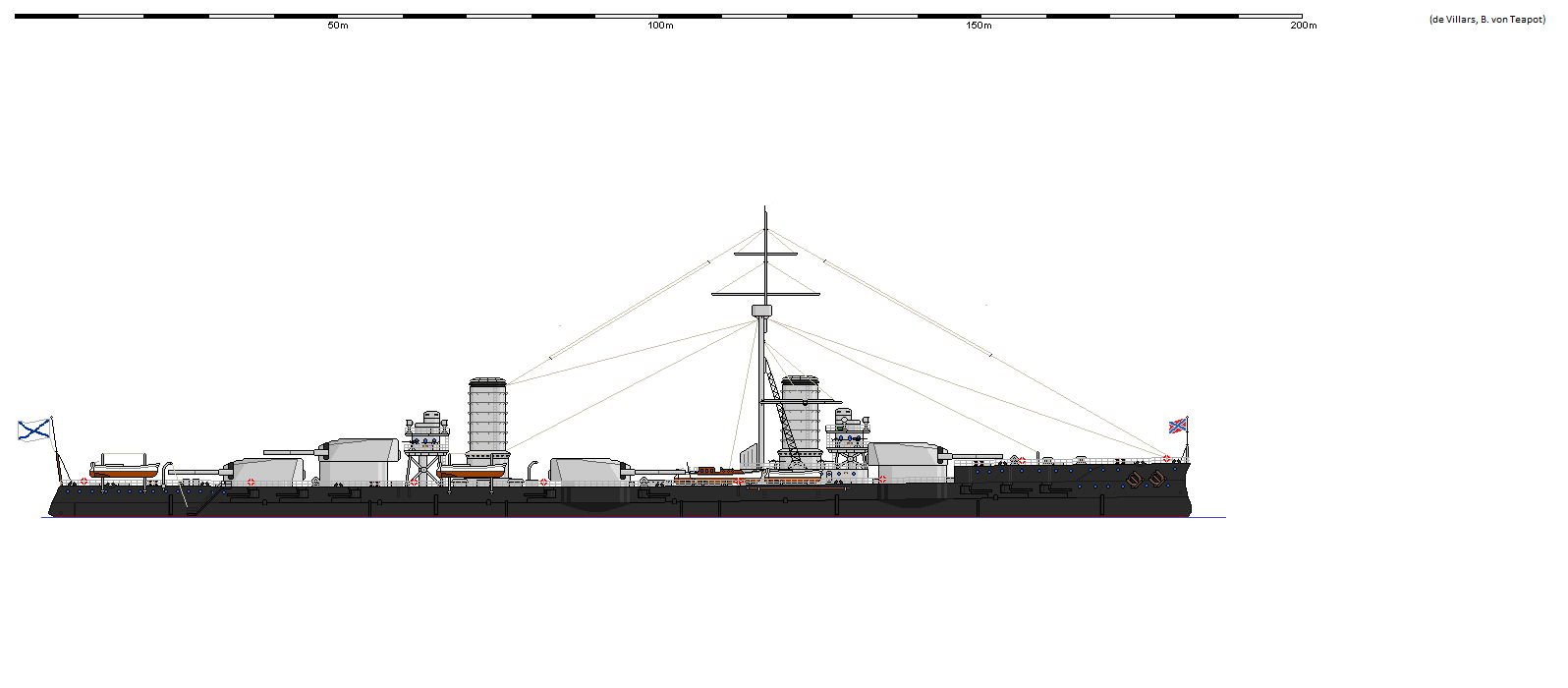

Swiatosław, russian battleship laid down 1908 (Engine 1910)
Displacement:
21 611 t light; 23 228 t standard; 23 995 t normal; 24 609 t full load
Dimensions: Length overall / water x beam x draught
581,62 ft / 577,69 ft x 91,99 ft x 26,74 ft (normal load)
177,28 m / 176,08 m x 28,04 m x 8,15 m
Armament:
12 - 12,01" / 305 mm guns (4x3 guns), 865,70lbs / 392,67kg shells, 1907 Model
Breech loading guns in turrets (on barbettes)
on side, evenly spread, 2 raised mounts
Aft Main mounts separated by engine room
6 - 12,01" / 305 mm guns (2x3 guns), 865,70lbs / 392,67kg shells, 1907 Model
Breech loading guns in turrets (on barbettes)
on centreline, all aft, 1 raised mount - superfiring
16 - 4,72" / 120 mm guns in single mounts, 52,72lbs / 23,91kg shells, 1905 Model
Quick firing guns in casemate mounts
on side, evenly spread
16 guns in hull casemates - Limited use in all but light seas
4 - 1,85" / 47,0 mm guns in single mounts, 2,84lbs / 1,29kg shells, 1883 Model
Quick firing guns in deck mounts
on centreline ends, evenly spread, all raised mounts - superfiring
8 - 0,30" / 7,6 mm guns in single mounts, 0,01lbs / 0,00kg shells, 1905 Model
Machine guns in deck mounts
on side, all amidships, all raised mounts - superfiring
Weight of broadside 16 438 lbs / 7 456 kg
Shells per gun, main battery: 120
4 - 18,0" / 457 mm submerged torpedo tubes
Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 7,99" / 203 mm 371,56 ft / 113,25 m 11,68 ft / 3,56 m
Ends: 5,98" / 152 mm 195,18 ft / 59,49 m 11,68 ft / 3,56 m
10,96 ft / 3,34 m Unarmoured ends
Upper: 4,02" / 102 mm 208,73 ft / 63,62 m 7,51 ft / 2,29 m
Main Belt covers 99% of normal length
Main belt does not fully cover magazines and engineering spaces
- Torpedo Bulkhead:
2,01" / 51 mm 371,56 ft / 113,25 m 25,69 ft / 7,83 m
- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 12,0" / 305 mm 7,99" / 203 mm 7,99" / 203 mm
2nd: 12,0" / 305 mm 7,99" / 203 mm 7,99" / 203 mm
3rd: 2,99" / 76 mm - -
- Armour deck: 1,93" / 49 mm (2,48" / 63 mm over amidships, 0,98" / 25 mm over ends), Conning tower: 10,00" / 254 mm
Machinery:
Coal and oil fired boilers, steam turbines,
Direct drive, 4 shafts, 30 695 shp / 22 899 Kw = 21,00 kts
Range 4 000nm at 10,00 kts
Bunker at max displacement = 1 380 tons (50% coal)
Complement:
963 - 1 253
Cost:
£2,668 million / $10,674 million
Distribution of weights at normal displacement:
Armament: 2 055 tons, 8,6%
Armour: 7 444 tons, 31,0%
- Belts: 2 353 tons, 9,8%
- Torpedo bulkhead: 709 tons, 3,0%
- Armament: 2 828 tons, 11,8%
- Armour Deck: 1 376 tons, 5,7%
- Conning Tower: 179 tons, 0,7%
Machinery: 1 329 tons, 5,5%
Hull, fittings & equipment: 10 783 tons, 44,9%
Fuel, ammunition & stores: 2 384 tons, 9,9%
Miscellaneous weights: 0 tons, 0,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
24 511 lbs / 11 118 Kg = 28,3 x 12,0 " / 305 mm shells or 4,2 torpedoes
Stability (Unstable if below 1.00): 1,02
Metacentric height 4,6 ft / 1,4 m
Roll period: 18,1 seconds
Steadiness - As gun platform (Average = 50 %): 62 %
- Recoil effect (Restricted arc if above 1.00): 0,87
Seaboat quality (Average = 1.00): 1,24
Hull form characteristics:
Hull has raised forecastle
Block coefficient: 0,591
Length to Beam Ratio: 6,28 : 1
'Natural speed' for length: 24,04 kts
Power going to wave formation at top speed: 44 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): 3,00 degrees
Stern overhang: 2,49 ft / 0,76 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 27,43 ft / 8,36 m
- Forecastle (21%): 25,92 ft / 7,90 m (17,45 ft / 5,32 m aft of break)
- Mid (50%): 15,45 ft / 4,71 m
- Quarterdeck (15%): 15,45 ft / 4,71 m
- Stern: 15,94 ft / 4,86 m
- Average freeboard: 18,09 ft / 5,51 m
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 109,2%
- Above water (accommodation/working, high = better): 121,3%
Waterplane Area: 38 543 Square feet or 3 581 Square metres
Displacement factor (Displacement / loading): 90%
Structure weight / hull surface area: 206 lbs/sq ft or 1 007 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,96
- Longitudinal: 1,48
- Overall: 1,00
Hull space for machinery, storage, compartmentation is adequate
Room for accommodation and workspaces is excellent
Good seaboat, rides out heavy weather easily
Swiatosław (1910)
Siełafaił (1911)
Gawriił (1912)
Rafaił (1913)
