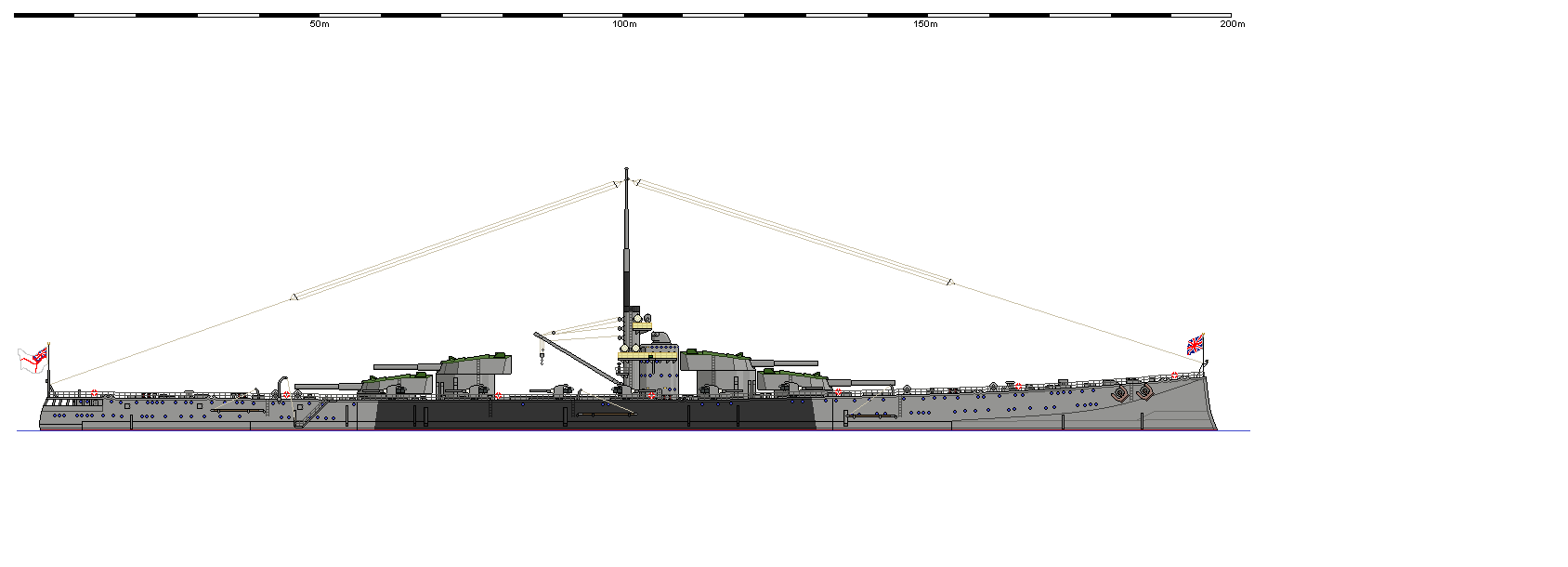

Poniższy okręt to zaproponowany Chinom w 1916 r. przez koncern Armstronga pancernik obrony wybrzeża. Nie jest niestety znana bliższa historia jego powstania. Wiadomo jedynie że miał być dość duży i raczej powolny, oraz uzbrojony w 4 działa 381 mm i 8 dział 120 mm. Wykazuje pewną wizualną zbieżność z projektem dla Rosji: https://alternathistory.com/bronenosets-nanosit-otvetnyj-udar/ który zresztą był już przeze mnie „przerabiany”, choć dla innego nabywcy (post z 22 listopada 2019 r.). Możliwe, że okręty będące wariacjami tego samego projektu były oferowane różnym państwom, w tym niniejszy wariant dwuwieżowy – Chinom.

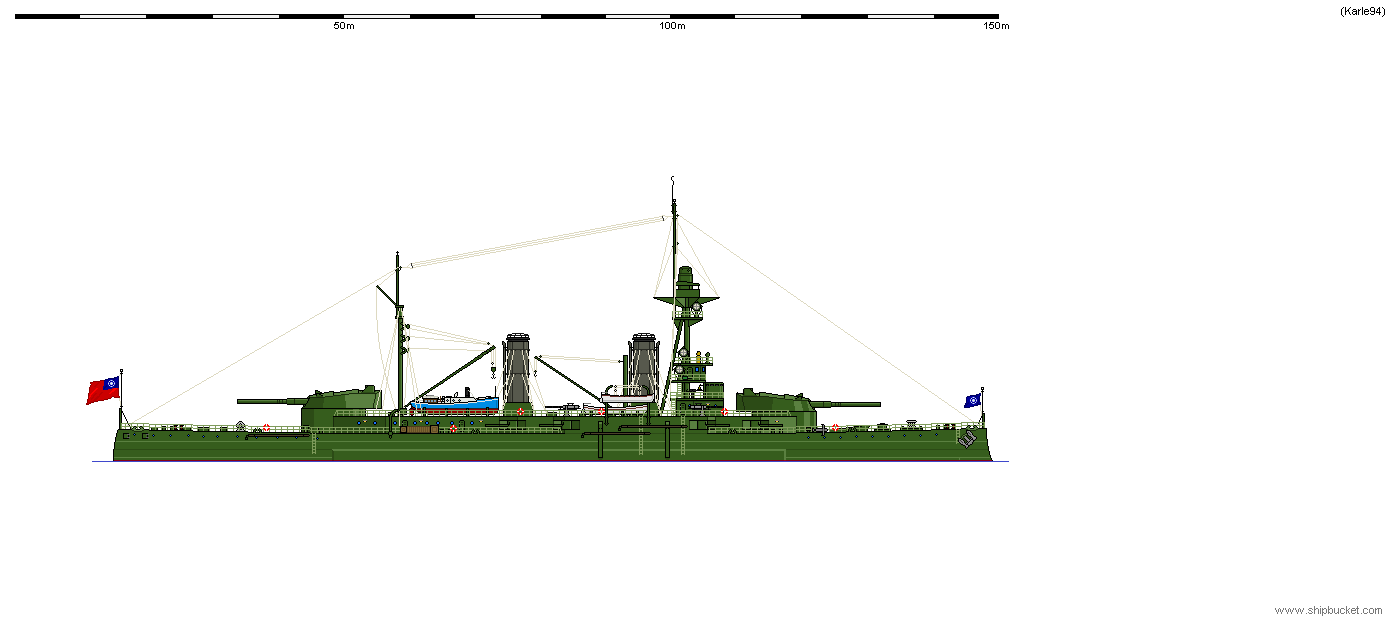

Yinglong, chinese coast defence battleship laid down 1916 (Engine 1917)
Displacement:
10 565 t light; 11 078 t standard; 11 346 t normal; 11 561 t full load
Dimensions: Length overall / water x beam x draught
441,96 ft / 441,96 ft x 75,52 ft x 20,41 ft (normal load)
134,71 m / 134,71 m x 23,02 m x 6,22 m
Armament:
4 - 15,00" / 381 mm guns (2x2 guns), 1 687,50lbs / 765,44kg shells, 1912 Model
Breech loading guns in turrets (on barbettes)
on centreline ends, evenly spread, all raised mounts
8 - 4,72" / 120 mm guns in single mounts, 52,72lbs / 23,91kg shells, 1895 Model
Quick firing guns in casemate mounts
on side, all amidships
4 - 2,99" / 76,0 mm guns in single mounts, 13,39lbs / 6,07kg shells, 1910 Model
Anti-aircraft guns in deck mounts
on side, all amidships, all raised mounts - superfiring
2 - 1,85" / 47,0 mm guns in single mounts, 3,17lbs / 1,44kg shells, 1900 Model
Quick firing guns in deck mounts
on side, all amidships, all raised mounts - superfiring
Weight of broadside 7 232 lbs / 3 280 kg
Shells per gun, main battery: 70
Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 9,02" / 229 mm 226,67 ft / 69,09 m 10,43 ft / 3,18 m
Ends: 4,02" / 102 mm 195,37 ft / 59,55 m 4,99 ft / 1,52 m
19,91 ft / 6,07 m Unarmoured ends
Upper: 5,98" / 152 mm 226,67 ft / 69,09 m 7,97 ft / 2,43 m
Main Belt covers 79% of normal length
Main belt does not fully cover magazines and engineering spaces
- Torpedo Bulkhead:
1,46" / 37 mm 226,67 ft / 69,09 m 16,99 ft / 5,18 m
- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 9,02" / 229 mm 5,98" / 152 mm 7,99" / 203 mm
2nd: 5,98" / 152 mm - -
- Armour deck: 1,54" / 39 mm (3,00" / 76 mm over amidships), Conning tower: 10,00" / 254 mm
Machinery:
Coal and oil fired boilers, steam turbines,
Geared drive, 2 shafts, 11 747 shp / 8 763 Kw = 18,00 kts
Range 2 800nm at 10,00 kts
Bunker at max displacement = 483 tons (50% coal)
Complement:
549 - 714
Cost:
£1,951 million / $7,804 million
Distribution of weights at normal displacement:
Armament: 904 tons, 8,0%
Armour: 3 615 tons, 31,9%
- Belts: 1 655 tons, 14,6%
- Torpedo bulkhead: 208 tons, 1,8%
- Armament: 962 tons, 8,5%
- Armour Deck: 683 tons, 6,0%
- Conning Tower: 109 tons, 1,0%
Machinery: 451 tons, 4,0%
Hull, fittings & equipment: 5 595 tons, 49,3%
Fuel, ammunition & stores: 781 tons, 6,9%
Miscellaneous weights: 0 tons, 0,0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
14 862 lbs / 6 741 Kg = 8,8 x 15,0 " / 381 mm shells or 3,2 torpedoes
Stability (Unstable if below 1.00): 1,02
Metacentric height 3,4 ft / 1,0 m
Roll period: 17,2 seconds
Steadiness - As gun platform (Average = 50 %): 62 %
- Recoil effect (Restricted arc if above 1.00): 0,87
Seaboat quality (Average = 1.00): 1,23
Hull form characteristics:
Hull has a flush deck
Block coefficient: 0,583
Length to Beam Ratio: 5,85 : 1
'Natural speed' for length: 21,02 kts
Power going to wave formation at top speed: 43 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -18,00 degrees
Stern overhang: 0,00 ft / 0,00 m
Freeboard (% = measuring location as a percentage of overall length):
- Stem: 16,47 ft / 5,02 m
- Forecastle (20%): 14,47 ft / 4,41 m
- Mid (50%): 13,98 ft / 4,26 m
- Quarterdeck (21%): 14,47 ft / 4,41 m
- Stern: 15,94 ft / 4,86 m
- Average freeboard: 14,65 ft / 4,46 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 97,6%
- Above water (accommodation/working, high = better): 118,6%
Waterplane Area: 24 028 Square feet or 2 232 Square metres
Displacement factor (Displacement / loading): 97%
Structure weight / hull surface area: 175 lbs/sq ft or 853 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,94
- Longitudinal: 1,76
- Overall: 1,01
Hull space for machinery, storage, compartmentation is adequate
Room for accommodation and workspaces is adequate
Good seaboat, rides out heavy weather easily
Yinglong (1917)
Jiaolong (1918)
